8: Demand Paging

Demand Paging

Modern programs require a lot of physical memory, but they don’t use all their memory all of the time.

90-10 rule: programs spend 90% of their time in 10% of their code.

Use main memory as cache for disk

Demand Paging as Cache

• What is block size
  • 1 page
• What is organization of this cache (i.e. direct-mapped, set-associative, fully-associative)?
  • fully associative: arbitrary virtual \(\to\) physical mapping
• How do we find a page in the cache when look for it?
  • first check TLB, then page-table traversal
• What is page replacement policy? (i.e. LRU, Random…)
• What happens on a miss?
  • go to lower level to fill miss (i.e. disk)
• What happens on a write? (write-through, write back)
  • write-back – need dirty bit

Memory-Mapped Files

Def. Memory-mapped Files (内存映射文件) is a segment of virtual memory that has been assigned a direct byte-for-byte correlation with some portion of a file or file-like resource.

• a special case of demand paging
• a replacement for syscall read()/write()

Pros

• transparency - the program can use pointers to access those data
• zero copy I/O - the OS just changes the page table entries without copying the data into memory; read()/write() needs to copy the data twice (disk-kernel-user)
• pipelining - the program can start executing as soon as the page table has been set
• inter-process communication - sharing becomes easy
• large files - which pages shall be in memory? OS handles it for you

Cons

• frequent page faults

Use m-map when

• random access: access data in a non-sequential manner
• large files: for very large files that may not fit into memory
• multiple processes: data sharing across processes
• memory-mapped I/O and automatic caching

Instead, use read()/write() when

• small files
• streaming data access
• portability: not every OS has m-map

Implementation of Memory-Mapped Files

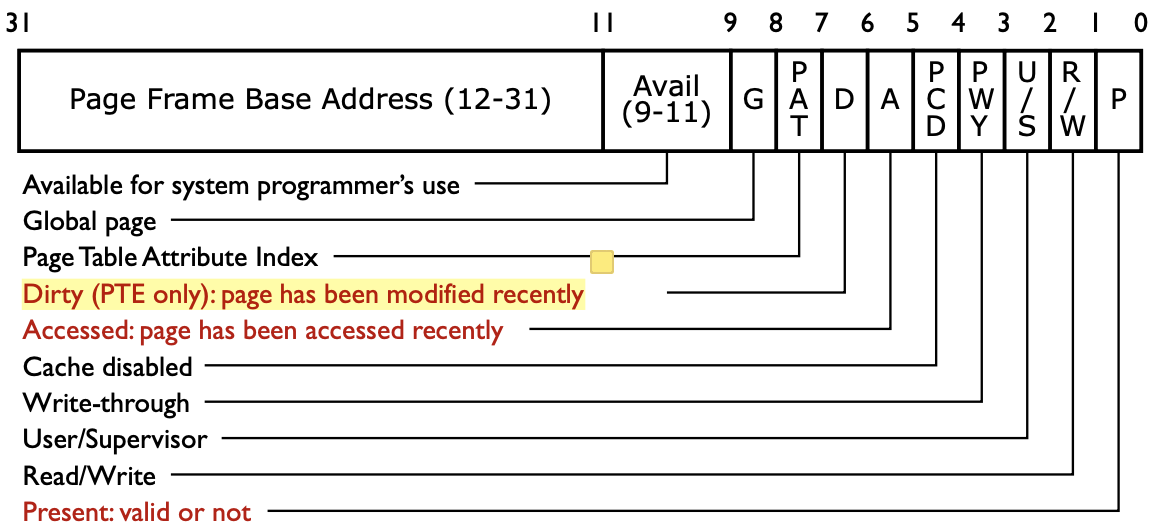

page table entry

Figure 1: Page Table Entry

• D (dirty): PTE only, page has been modified recently
• A (accessed): page has been accessed recently

When program accesses an invalid address:

1. (MMU) TLB miss; full page table lookup
2. (MMU + OS) trap into page fault handler
3. (OS) convert virtual address to file offset
4. (OS) read data from disk to the memory (blocked)
5. (CPU) disk interrupt when read completes
6. (OS) updating page table by marking the entry as valid
7. (MMU) TLB miss; full page table lookup
8. (MMU) TLB update

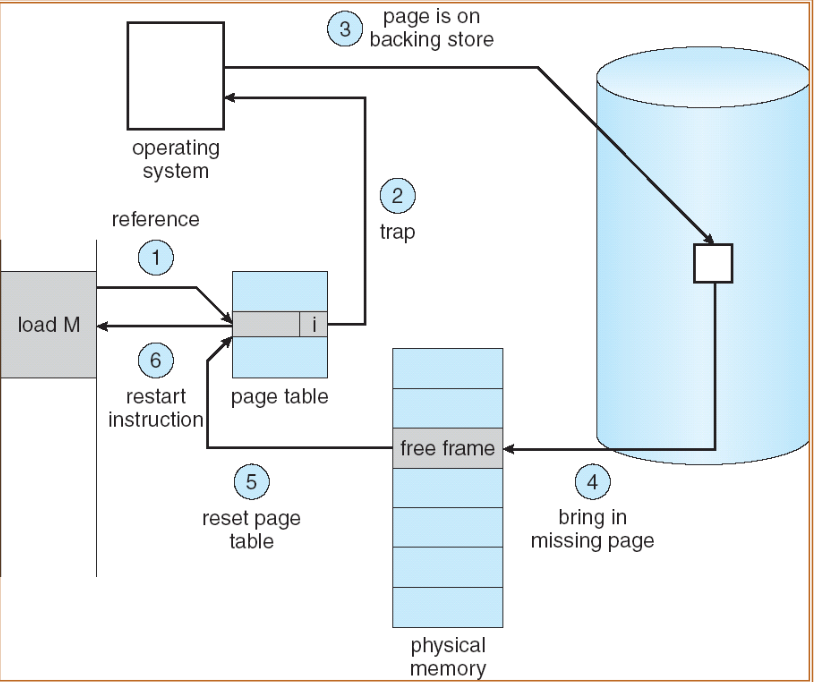

process

Figure 2: When program accesses an invalid address

The Dirty Bit

The hardware tracks it with a dirty bit in page table entry

• initialized to 0
• Set to 1 whenever there is a store instruction for the page

The TLB also has a dirty bit

Allocating New Page Frame

If there is no empty page

• select a page to evict
• find page table entries that point to the evicted page
  • core map - an array that maps physical page frames back to the table entries
• set page table entry to invalid
  • TLB shoot down
• copy back any changes to the evicted page
  • write back
  • the same for application exit
  • dirty bit

Page Eviction Policies

• FIFO: throws out oldest page. Let every page live in memory for same amount of time.
• MIN: replaces page that won’t be used for the longest time
• RANDOM: picks random page for every replacement
  • typic solution for TLB
• LRU: replaces page that hasn’t been used for the longest time
  • programs have locality, so if something not used for a while, unlikely to be used in the near future
  • how to implement LRU? Use a list
    • on each use, remove page from list and place at head
    • LRU page is at tail
  • problems with this scheme for paging
    • need to know immediately when each page is used, so we can change its position in list
    • many instructions for each hardware access
    • 页面访问及其频繁，开销过大

Why we can implement LRU for TLB entry replacement, but not demand paging replacement?

• TLB is purely handled in hardware (MMU)
• TLB has fewer entries (typically 16-512)

Clocking Algorithm

• implementation with the use bit
  • initialized to 0 in page table
  • set to 1 whenever there is a page access
• when we need to evict a page, we look at the page under the hand
  • if its use bit is 1, clear it and move the hand, repeat
  • if its use bit is 0, evict it

开销分析

• 驱逐开销变大
• 访问几乎没有开销

可以适当增加 use bit 的上限

Which bits of PTE entry are used?

• Use: set when page is referenced; cleared by clock algorithm
• Modified: set when page is modified, cleared when page written to disk
• Valid: ok for program to reference this page
• Read-Only: ok for program to read page, but not modify
